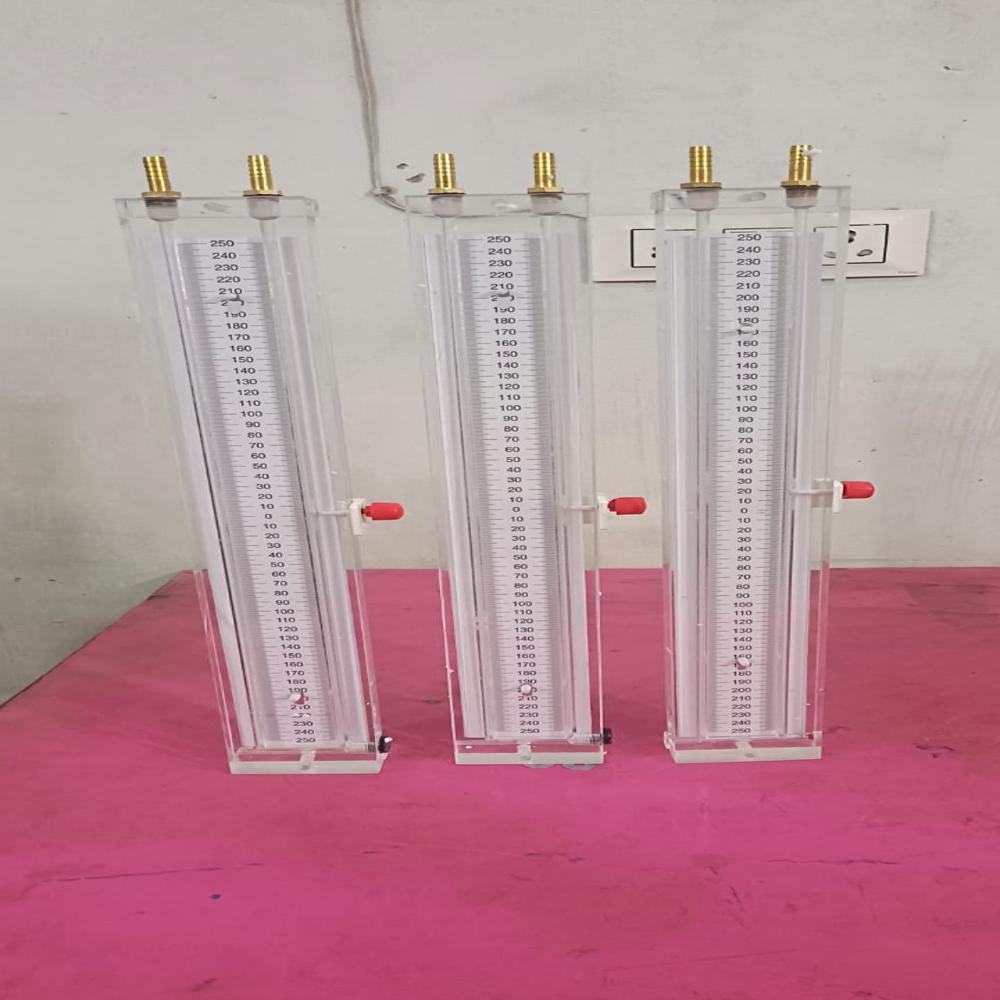

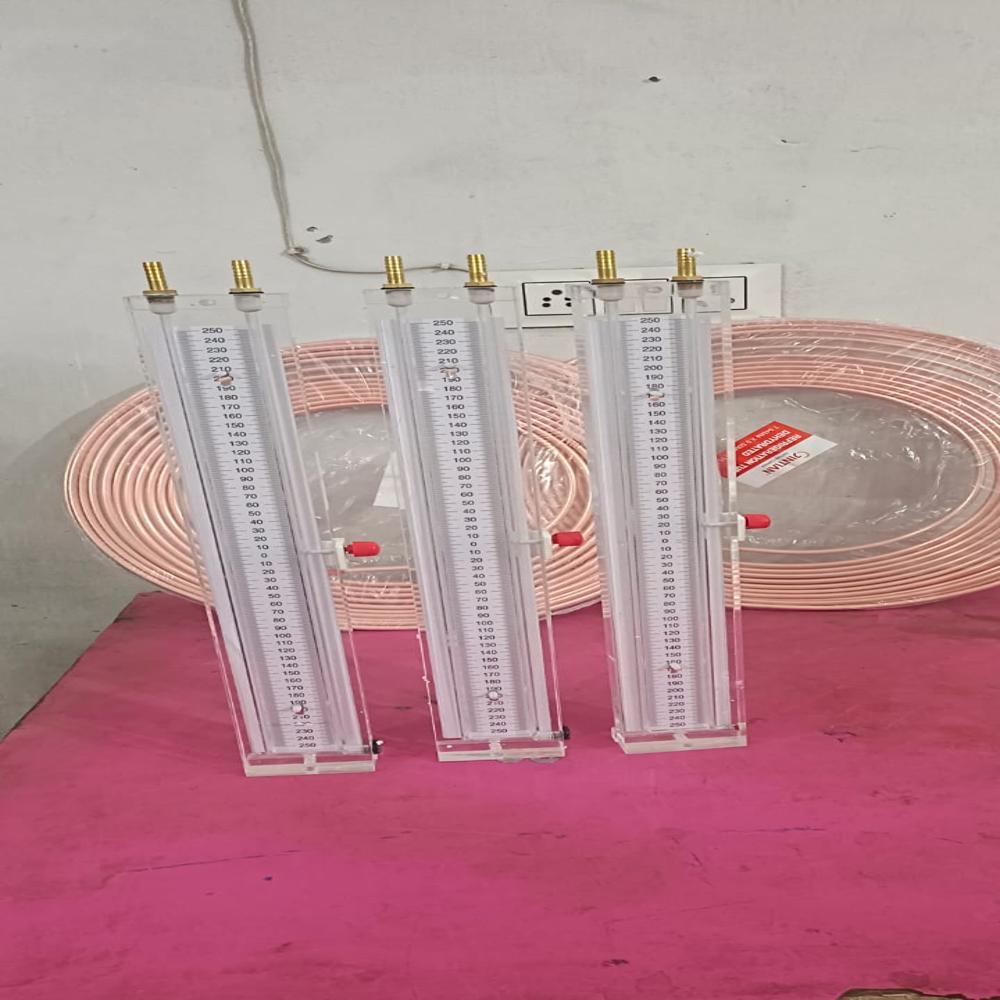

Send InquiryAcrylic Body Manometer
Acrylic Body Manometer Specification
- Material
- Acrylic
- Test Range
- 100 - 0 - 100 mm WC
- Color
- White
- Product Type
- Acrylic Body Manometer
Acrylic Body Manometer Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 1-2 Week
About Acrylic Body Manometer
Pressure is defined as a force per unit area - and the most accurate way to measure low air pressure is to balance a column of liquid known weight against it and measure the height of the liquid column so balanced. The unit of measure commonly used are mm hg /inches hg using mercury as the fluid, and mm wc / inches wc using water or oil as the fluid.
Standard Ranges
| "U" Tube Manometer | Single limb manometer | Inclined manometer | |||
| Ranges | Least Count (in mm) | Ranges (mm W.C/H.G) | Least count (in mm) | Ranges (mm W.C/H.G) | Least Count (in mm) |
| 50-0-50 | 1 | 0-75 | 1 | 0-6 | 0.05 |
| 100-0-100 | 1 | 0-100 | 1 | 0-10 | 0.1 |
| 150-0-150 | 1 | 0-150 | 1 | 0-12 | 0.1 |
| 200-0-200 | 1 | 0-200 | 1 | 0-15 | 0.1 |
| 250-0-250 | 1 | 0-250 | 1 | 0-25 | 0.2 |
| 300-0-300 | 1 | 0-300 | 1 | 0-50 | 0.5 |
| 350-0-350 | 1 | 0-350 | 1 | 0-75 | 0.5 |
|
|
| 0-500 | 1 | 0-100 | 0.5 |
|
|
|
|
| 0-150 | 0.5 |
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Manometers Category
Single Limb Manometer
Price 800 INR / Set
Minimum Order Quantity : 1 Set
Product Type : Single Limb Manometer
Material : Acrylic
Test Range : 0 to 75 mm H2O
Color : White And Red
Metalic Body Manometer
Minimum Order Quantity : 1 Unit
Product Type : Metalic Body Manometer
Material : Metal
Test Range : 1000100 mm H2O
Color : White And Grey
