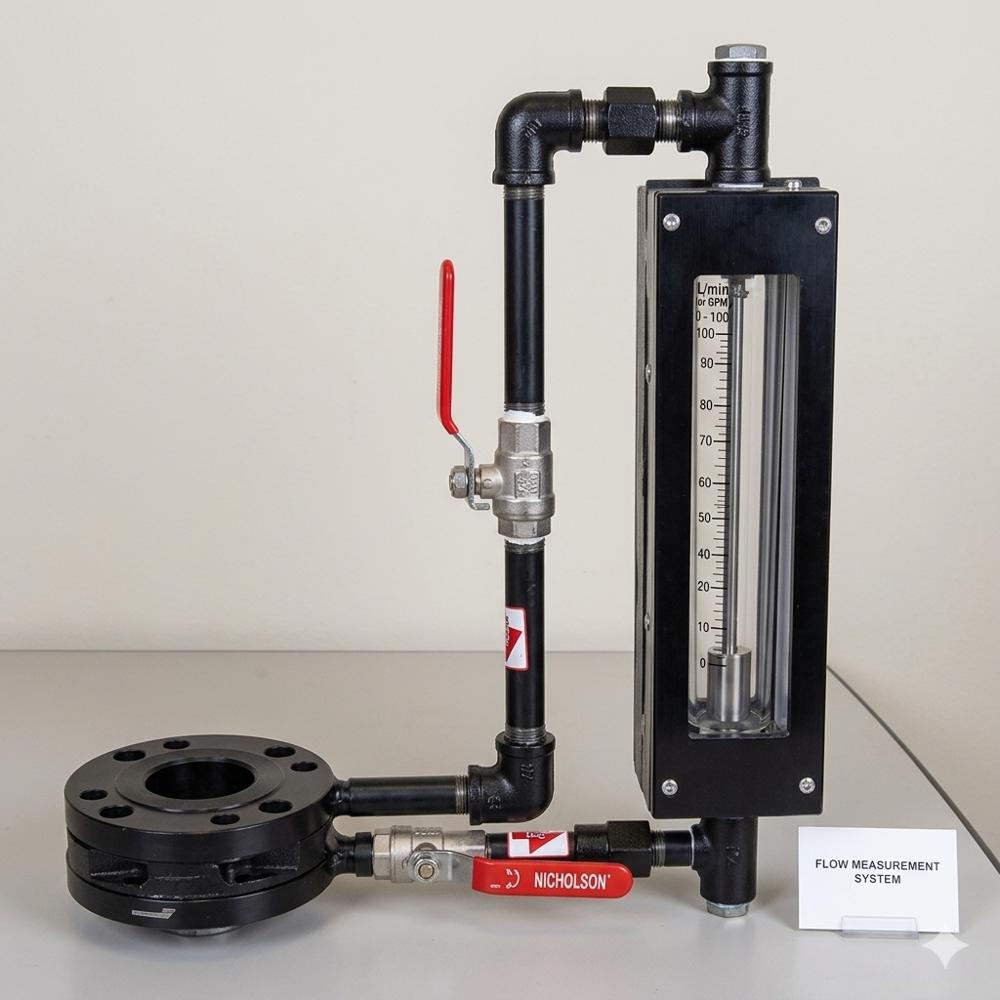

Bypass Rotameter

Name: Bypass Rotameter
Brand: Flow And Control System Pvt. Ltd.
Price: 9000 INR
Availability: InStock

Price 9000 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Bypass Rotameter Specification

Operating Voltage
Not required (mechanical device)

Mounting Type
Vertical in-line with pipeline

Material
Metal

Automation Grade
Manual/Mechanical

Gas Pressure
Up to 25 kg/cm2 (varies with design)

Product Type
Bypass Rotameter

Display Type
Glass Tube Scale with Indicator

Port Size
15 mm to 300 mm (varies as per application)

Usage
Laboratory

Accuracy
1.5% of full scale

Resolution
Analog scale with graduated markings

Max Height
400-600 mm (depends on model)

Power Supply
No external power required

Application
Used for flow measurement of liquids, gases, and steam in pipelines

Measuring Range
15 LPH to 10,000 LPH & higher (custom ranges available)

Features
Easy installation, low-pressure drop, visible scale, corrosion-resistant materials

Response Time
1-3 seconds (typical)

Interface Type
Flanged/Threaded Process Connection

Humidity
Up to 95% RH (non-condensing)

Temperature
Up to 150C (depends on construction material)

Hardness
Depends on construction (typically Stainless Steel 304/316, PTFE lining optional)

Equipment Type
Bypass Rotameter

Capacity
As per pipe/flange size

Machine Weight
Approx. 6-12 kg (varies with model)

Control Mode
Manual/On-site Indicator

Ingress Protection
IP65 (for indicator enclosure, if applicable)

Indicator Type
Magnetic or Direct Reading Floating Indicator

Density Compensation
Available on request

Optional Accessories
Limit switches, Transmitters (on request)

Pressure Rating
Up to 40 bar (as per model/configuration)

Material of Construction
SS 304/316, MS, PP, PTFE (wetted parts as per order)

Conformity
Meets IS/ISO standards for industrial flowmeters

Scale Marking
Calibrated in LPH, LPM, or customized units

Process Connection
Flanged as per ANSI/DIN/BS or threaded (customizable)

Tube Material
Borosilicate Glass/Polycarbonate (as per specification)

Viscosity Range
Suitable for fluids with viscosity up to 200 cP

Bypass Rotameter Trade Information

Minimum Order Quantity
1 Set

Delivery Time
1-2 Week

About Bypass Rotameter

Spotlight on our Last Chance New Release: the grandiose Bypass Rotameter, engineered for laboratory and industrial flow monitoring of liquids, gases, or steam. Crafted with masterful precision using SS 304/316, MS, PP, or PTFE for wetted parts, the instrument features customizable process connections, magnetic or direct reading indicators, and IP65 ingress protection. Its noteworthy design includes a borosilicate glass or polycarbonate tube, density compensation, and scale marking in LPH/LPM or custom units. Ideal for applications up to 40 bar and 150C, it delivers remarkable performance and durability, meeting IS/ISO standards.

Highlights of Bypass Rotameter Applications & Features

The Bypass Rotameter finds significant application in laboratory and industrial pipeline systems for precise measurement of liquids, gases, and steam. Its noteworthy features include easy installation, corrosion-resistant materials, and exceptional visibility due to its glass or polycarbonate tube. Designed for vertical in-line mounting, the surface application spans diverse operational environments, tolerating up to 95% RH humidity and up to 150C temperatures. It offers analog resolution, mechanical operation, and rapid response, ensuring reliability across a vast measurement range.

Bypass Rotameter: Certifications & Commercial Terms

Our bypass rotameters are certified to stringent IS/ISO standards, validating their reliability in multiple industrial sectors. Terms of exchange are transparent, supporting a smooth freight process and prompt delivery. Supply ability adjusts to your demand, and purchase orders are efficiently processed. Products can be customized and shipped across India, with various payment modes accepted for streamlined transactions. Trust in noteworthy service, from procurement to commissioning.

FAQ's of Bypass Rotameter:

Q: How is the Bypass Rotameter installed in a pipeline?

A: The Bypass Rotameter is designed for vertical in-line installation, using either flanged or threaded process connections that can be customized as per ANSI, DIN, or BS standards, facilitating seamless integration with existing pipelines.

Q: What are the primary benefits of using a Bypass Rotameter?

A: Key advantages include mechanical operation-requiring no external power-durable construction using corrosion-resistant materials, easy analog scale visibility, quick response time, and suitability across a wide range of fluids, pressures, and temperatures.

Q: Where can the Bypass Rotameter be applied?

A: It is ideal for laboratory environments as well as industrial flow monitoring systems in sectors such as chemical, petrochemical, water treatment, and steam pipelines, owing to its robust performance and adaptability.

Q: What materials are used for the Bypass Rotameter's construction?

A: Depending on process requirements, wetted parts can be constructed from SS 304/316, MS, PP, or PTFE, while the indicator tube may be borosilicate glass or polycarbonate, ensuring suitability across various fluids and working conditions.

Q: When is density compensation recommended for this equipment?

A: Density compensation is suggested when precise measurement is required for fluids with significant density variation, ensuring enhanced accuracy; this is available on request with custom orders.

Q: What is the process for placing an order and delivery?

A: A purchase order can be submitted specifying all custom requirements. Once processed, the product is packaged for secure freight shipping, with prompt exchange terms and clear communication regarding timelines and logistics.
