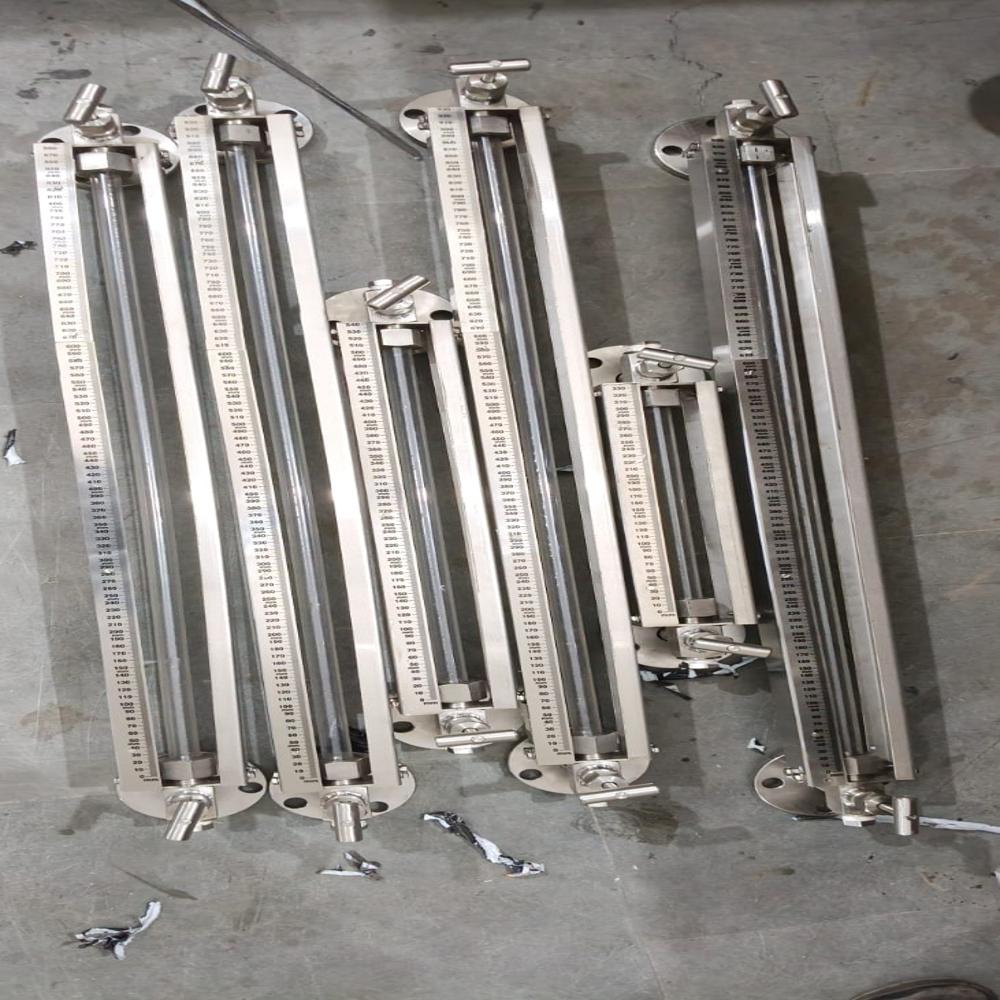

Tubular Level Gauge

Name: Tubular Level Gauge
Brand: Flow And Control System Pvt. Ltd.
Price: 7000.0 INR
Availability: InStock

Price 7000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Tubular Level Gauge Specification

Resolution
1 mm Graduation Available

Process Connection
Flange, Threaded, or Socket Weld

Storage Temperature
-40C to 200C

Output
Visual Indication

Equipment Type
Tubular Level Gauge

Sensitivity
High for Visual Inspection

Application Media
Liquids (Water, Chemicals, Oil, etc.)

Temperature Range
Up to 200C (Standard)

Pressure Range
Up to 10 kg/cm2 (Standard), Higher on Request

Humidity %
0-100% RH (Immune)

Dimension (L*W*H)
Varies as per Specification (L up to 3000 mm)

Length
Customizable (Typically 500 mm to 3000 mm)

Capacity
Dependent on Tank Size

Input
Liquid Level

Operating Temperature
Up to 200C (Special Designs Available for Higher)

Protection
Optional (Protective Channels/Covers)

Measuring Units
mm, Inches, Centimeters

Housing Material
Stainless Steel, Carbon Steel (Optional)

Stability
High Mechanical & Chemical Stability

Model
Standard/Custom as per Application

Color
Transparent Tube with Metallic Ends

Connecting Type
Flanged, Threaded, or Welded

Language
Universal

Measurement Range
Determined by the Length of the Gauge

Connector
Flanged, Threaded

Cut Size
Customizable as per Tank/Vessel

Diameter
16 mm, 19 mm, or as per requirements

Sensor Type
Visual/Mechanical

Mounting
Vertical, Side of Tank or Vessel

Response Time
Instantaneous/Real-time

Material
Borosilicate Glass Tube, Stainless Steel Flanges/Valves

Power Supply
Not Required (Manual Operation)

Accuracy
2 mm

Display Type
Direct Visual Level

Range
Dependent on Application, Commonly up to 3000 mm

End Connection Standard
ASA/ANSI/DIN/IS Options

Glass Tube Protection
Provided with Transparent Casing or Frame

End Valve Type
Isolation Valve (Ball / Needle / Cock Type)

Scale Marking
Etched/Printed on Metal Frame

Shut-off Provision
Available at Top/Bottom

Optional Accessories
Frost Protection, Illuminator, PVC Protector

Installation Orientation
Vertical Operation

Maintenance
Easy Tube Replacement Design

Drain/Vent Connection
Available for Maintenance

Service Fluid Suitability
Water, Oil, Non-Corrosive/Chemical Liquids

Working Pressure
Typically up to 10 kg/cm2

Tubular Level Gauge Trade Information

Minimum Order Quantity
1 Set

Delivery Time
1-2 Week

About Tubular Level Gauge

Order today the first-rate Tubular Level Gauge, a marvelously engineered device highlighted for its radiant performance and reliable visual indication in laboratory and industrial environments. Favored in favorable reviews, it features robust borosilicate glass tubing, stainless steel ends, and a user-friendly vertical installation-suitable for water, oil, and non-corrosive liquids. With customizable dimensions, high mechanical and chemical stability, and easy tube replacement, this gauge delivers instant, accurate readings up to 3000 mm range. Optional end connections and accessories like frost protection and illuminators are available, meeting various industry standards. Order now for dependable operation!

Primary Use, Key Materials & Industrial Versatility

The Tubular Level Gauge excels in application across laboratories, chemical plants, refineries, and power plants, where real-time, direct visual liquid level measurement is essential. Its construction features a transparent borosilicate glass tube with metallic ends, ensuring high durability in challenging media like water, oil, and non-corrosive chemicals. Designed to be mounted vertically on tanks or vessels, it performs best in fluid handling, process monitoring, and storage applications, offering reliability in a variety of plant settings.

Certification, Sampling, and Shipping Details

This first-rate Tubular Level Gauge can be supplied with international certifications upon request, ensuring compliance with ASA, ANSI, DIN, or IS standards. Samples can be made available for evaluation. Packaging is robust to guarantee safe transport to your facility. For quotations, simply reach out with your specifications. The gauges are shipped across India and beyond, meeting diverse industrial supply demands with customization and prompt fulfillment.

FAQ's of Tubular Level Gauge:

Q: How is the Tubular Level Gauge installed and maintained?

A: The Tubular Level Gauge is installed vertically on the side of a tank or vessel via flanged, threaded, or welded connections. Maintenance is simplified by its easy tube replacement design and accessible drain/vent connections.

Q: What types of fluids can this gauge be used with?

A: It's suitable for a wide range of service fluids, including water, oil, and non-corrosive or mild chemical liquids, thanks to its borosilicate glass tube and stainless steel or carbon steel construction.

Q: What benefits does the transparent casing or protective frame provide?

A: The transparent casing or frame safeguards the glass tube from external damage while allowing clear, direct visual inspection of liquid levels, ensuring both safety and measurement accuracy.

Q: When should I consider optional accessories like frost protection or an illuminator?

A: Optional accessories such as frost protection or an illuminator are advisable in environments with low temperatures or poor lighting, ensuring optimal readability and gauge longevity.

Q: Where can this Tubular Level Gauge be used most effectively?

A: It's highly effective in laboratories, chemical processing units, industrial storage facilities, and power generation plants-anywhere liquid level monitoring is crucial.

Q: What process standards are supported for end connections?

A: The gauge supports a range of end connection standards including ASA, ANSI, DIN, and IS, with flanged, threaded, or socket weld options to best suit your installation requirements.
