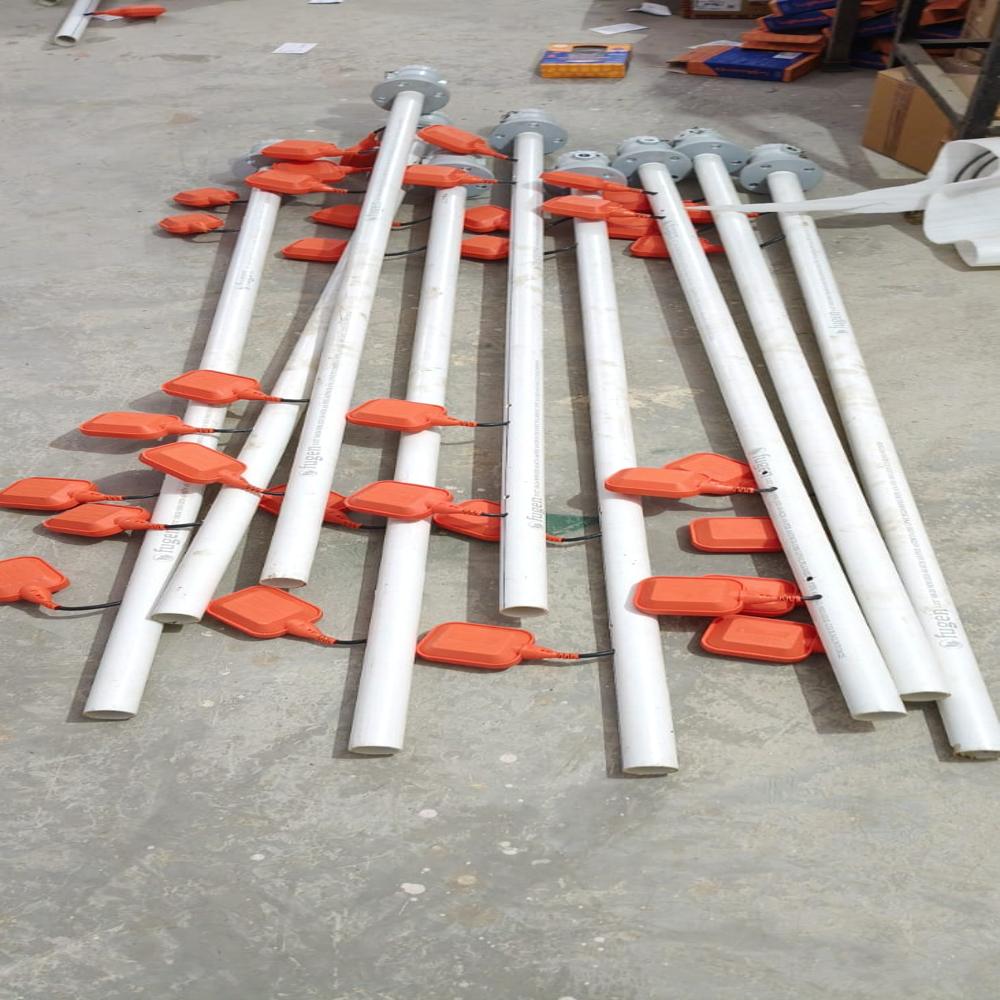

Cable Type Balloon Level Switch

Name: Cable Type Balloon Level Switch
Brand: Flow And Control System Pvt. Ltd.
Price: 450.0 INR
Availability: InStock

Price 450.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Cable Type Balloon Level Switch Specification

Response Time
Instantaneous on liquid level change

Measuring Range
Depends on cable length (typically 2-5 meters)

Application
Used for liquid level control in tanks, wells, sumps, and similar applications

Power Supply
230V AC / 110V AC / 24V DC (depending on model)

Equipment Type
Cable Type Balloon Level Switch

Humidity
Up to 95% RH (Non-condensing)

Frequency
50/60 Hz

Mounting Type
Suspension/Cable mounting

Features
Corrosion resistant, leak proof, maintenance-free, cable float design

Temperature
Operating: 0C to 55C

Accuracy
Switching repeatability 2 cm

Operating Voltage
250V AC / 24V DC

Max Height
Based on cable length

Automation Grade
Semi-automatic

Interface Type
Wire connection (open leads)

Product Type
Sensing Probe

Usage
Automatic water level detection and pump control

Capacity
10A @ 250V AC

Machine Weight
Approximately 300 grams

Control Mode
Float-operated, cable type

Float Diameter
100 mm (approximate)

Switch Type
NO+NC (Normally Open & Normally Closed)

Protection Class
IP68

Cable Length
Customizable, typically 2 to 10 meters

Contact Rating
10 (8)A 250V AC

Color
Blue & yellow

Liquid Compatibility
Fresh water, waste water, non-corrosive liquids

Cable Material
PVC insulated

Body Material
Polypropylene (PP)

Cable Type Balloon Level Switch Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
1-2 Week

About Cable Type Balloon Level Switch

Each Floaty Balloon Type Level Switch is made up of non-toxic material which makes it fit for usage from water to sewage media. Most of the people use this switch for level switching in various industries like chemical, pharmaceutical, food processing, oil refinery etc. This switch is installed in tanks or vessels which moves up or down on the probe immersed in fluids. The provided switch comes with a steel ball enclosed with polypropylene float casing. This switch is a simple, durable, reliable and maintenance-free device measuring liquid levels. You can use this switch within 20 - 80 degrees C working temperature and maximum 5 Bar pressure. Cable length of this Floaty Balloon Type Level Switch can be adjusted conveniently with a counterweight.

Versatile Application and Design

Designed for industrial water level detection and pump automation, this balloon level switch features a float diameter of approximately 100mm, enabling reliable operation in tanks, wells, and sumps. The switch's cable type and suspension mounting provide adaptability for a range of installation depths and applications.

Superior Build Quality and Reliability

Constructed with a polypropylene (PP) body and PVC-insulated cable, this level switch ensures corrosion resistance, leak-proof performance, and durability in harsh environments. Its IP68 protection class allows for seamless functioning in up to 95% relative humidity and temperatures between 0C and 55C.

Instantaneous and Accurate Switching

With a contact rating of 10(8)A at 250V AC and a switching repeatability of 2 cm, the level switch delivers prompt and precise response to liquid level changes. Its float-operated cable design ensures maintenance-free operation and reliable automation of water control processes.

FAQ's of Cable Type Balloon Level Switch:

Q: How does the Cable Type Balloon Level Switch operate for water level detection?

A: The switch uses a float-operated, cable-suspended design that moves with liquid level changes. When the liquid reaches a set height, the internal switch toggles between Normally Open (NO) and Normally Closed (NC) modes, providing instant pump control or alarm activation.

Q: What types of liquids is this switch compatible with?

A: It is suitable for fresh water, wastewater, and non-corrosive liquids, making it ideal for various industrial water management and testing applications.

Q: When is it best to use a cable length of 2 meters versus 10 meters?

A: Shorter cable lengths (around 2 meters) are recommended for shallow tanks or sumps, while longer cables (up to 10 meters) suit deep wells or applications where the measurement range needs to cover greater depths.

Q: Where can this level switch be installed?

A: Designed for suspension or cable mounting, the switch can be installed in tanks, wells, sumps, or any industrial setting requiring automatic liquid level management.

Q: What is the process for installing and connecting the switch?

A: Simply suspend the switch at the desired depth using its cable. The open lead wire connection can be integrated into existing control circuits for electric pump automation. Ensure the supply matches the model's voltage rating for optimal performance.

Q: What are the primary benefits of using this balloon level switch?

A: Key benefits include corrosion resistance, leak-proof construction, maintenance-free operation, and precise, real-time response to liquid level changes, promoting efficient and reliable water management.
