Float and Board Level Indicator

Name: Float and Board Level Indicator
Brand: Flow And Control System Pvt. Ltd.
Price: 6000.0 INR
Availability: InStock

Price 6000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Float and Board Level Indicator Specification

Response Time
Instantaneous

Equipment Type
Float & Board Level Indicator

Usage
Laboratory

Product Type
Float and Board Level Indicator

Hardness
Material specific (SS304/SS316 float - as per requirement)

Resolution
1 cm or as marked on Board

Measuring Range
Customizable, Typical: 0-5m, 0-10m

Automation Grade
Manual

Port Size
Customized as per requirement

Test Range
100-0-100 mm H2O

Temperature
-10C to +80C

Operating Voltage
Not Required (Mechanical Operation)

Display Type
Mechanical Scale with Board Graduation

Gas Pressure
Atmospheric

Features
Corrosion-resistant construction, Easy installation, Vapour sealed version available

Humidity
0-95% RH (Non-condensing)

Accuracy
1% of Full Scale

Interface Type
Mechanical - No Electrical Interface

Max Height
10 meters (Custom Available)

Application
Liquid Level Measurement in Underground and Overhead Tanks

Color
Grey

Material
Metal

Mounting Type
Top of Tank or Side Mount

Capacity
Up to 10 meters of tank height

Machine Weight
Approx. 8-12 kg

Test Width
Depends on Tank Size

Control Mode
Manual

Vapour Sealed Version
Available for hazardous or vapour sensitive applications

Indicator
Magnetic/Red Indicator for Clear Visibility

Compliance
Meets Industrial Standards for Level Measurement

Service
Suitable for Non-corrosive and Mildly Corrosive Liquids

Pulley Housing
Cast Aluminium / Stainless Steel / Weatherproof Enclosure

Maintenance
Low, Simple Mechanism

Scale Board Graduations
Calibrated in Metric Units or as per Custom Requirement

Tank Shape Compatibility
Cylindrical, Rectangular, Vertical or Horizontal Tanks

Operating Pressure
Atmospheric (Consult manufacturer for pressurized tanks)

Cable/Wire
Stainless Steel or Flexible Nylon Cord

Float Material
Stainless Steel or Aluminium

Float and Board Level Indicator Trade Information

Minimum Order Quantity
1 Set

Delivery Time
1-2 Week

Main Domestic Market
All India

About Float and Board Level Indicator

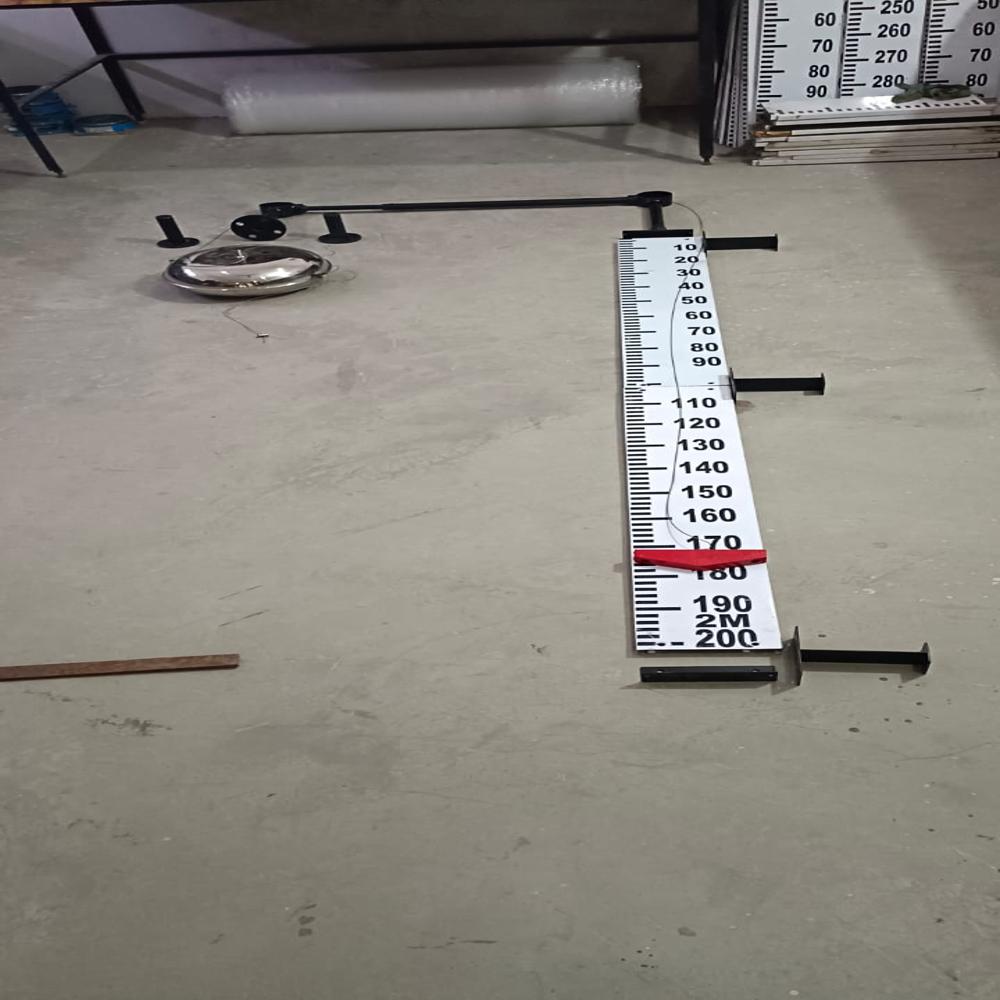

As the liquid level rises, a large dia float moves up with the change in liquid level in the tank.

The float is attached to a multi strand wire rope, which passes through 2 nos. friction less specially designed pulleys. The Pulleys in turn are connected to a pointer, which moves on a graduated scale by the side of the tank.

Clear visibility.
Powder coated screen printed scale board.
Less corissosion powder coated finish.
Easy movement nylon roller pointer glides effortlessly.
No guide wire specially designed self centering float/ Anchor plate optional.
Non- stretching multistrand wire rope in SS/PP.
Dust free housing for pulleys - minimizing friction in movement.
Easy to install, modular design.
Vapour tight-version for evaporating fluids.

APPLICATIONS

Water
Brine
Vegetable oil
H2SO4
LSHS
HCL
Molasses
NH4OH
Caustics
Vapor sealed for Solvent etc.

Versatile and Durable Construction

The Float and Board Level Indicator boasts corrosion-resistant materials such as stainless steel and aluminium to operate reliably in harsh environments. Its design accommodates both cylindrical and rectangular tanks, supporting vertical or horizontal installations, with vapour-sealed options available for hazardous or sensitive applications.

Ease of Installation and Operation

Featuring a simple, manual mechanism with mechanical scale display, the indicator requires no external power. Designed for straightforward installation at the tank's top or side, its clear board graduations ensure easy visual checks for water, oil, or other storage liquids, aiding facility management and compliance.

Customizable and Accurate Measurement

This level indicator offers tailored measuring ranges, with standard options of 0-5 meters and 0-10 meters, and offers accuracy up to 1% of full scale. Customers may request custom board markings and port sizes to suit varying tank dimensions or specific site requirements, ensuring flexibility in industrial applications.

FAQ's of Float and Board Level Indicator:

Q: How does the Float and Board Level Indicator measure liquid levels in tanks?

A: The device uses a buoyant float connected via a cable or nylon cord to a mechanical scale. As liquid levels rise or fall in the tank, the float moves accordingly, which turns a pulley system, displaying the level on a calibrated scale. This ensures visual, real-time indication without electrical input.

Q: What types of liquids and tanks are suitable for this indicator?

A: This level indicator is suitable for non-corrosive and mildly corrosive liquids such as water and oil, working efficiently in cylindrical, rectangular, vertical, or horizontal tanks, including underground and overhead configurations. Custom materials and vapour-sealed models are available for specific liquid or tank requirements.

Q: When should I choose a vapour-sealed version?

A: Opt for the vapour-sealed version when dealing with hazardous, vapour-sensitive, or volatile liquids. This prevents vapours from escaping and enhances safety by containing odors and minimizing risk in sensitive environments.

Q: Where is the indicator typically installed on the tank?

A: It can be mounted either on the top or the side of the tank, depending on the site layout and specific application needs, making it suitable for new installations or retrofitting existing tanks.

Q: What is the maintenance process and how often is it required?

A: The indicator has a simple design requiring minimal maintenance. Periodic visual inspections to check the float, cable tension, and scale clarity are generally sufficient. No electrical servicing is necessary due to its mechanical operation.

Q: What are the key benefits of using this indicator over electronic level gauges?

A: Its key benefits include mechanical reliability, no need for electrical power, straightforward installation, and ease of reading. The corrosion-resistant materials and low maintenance add to its suitability for industrial and laboratory environments.
