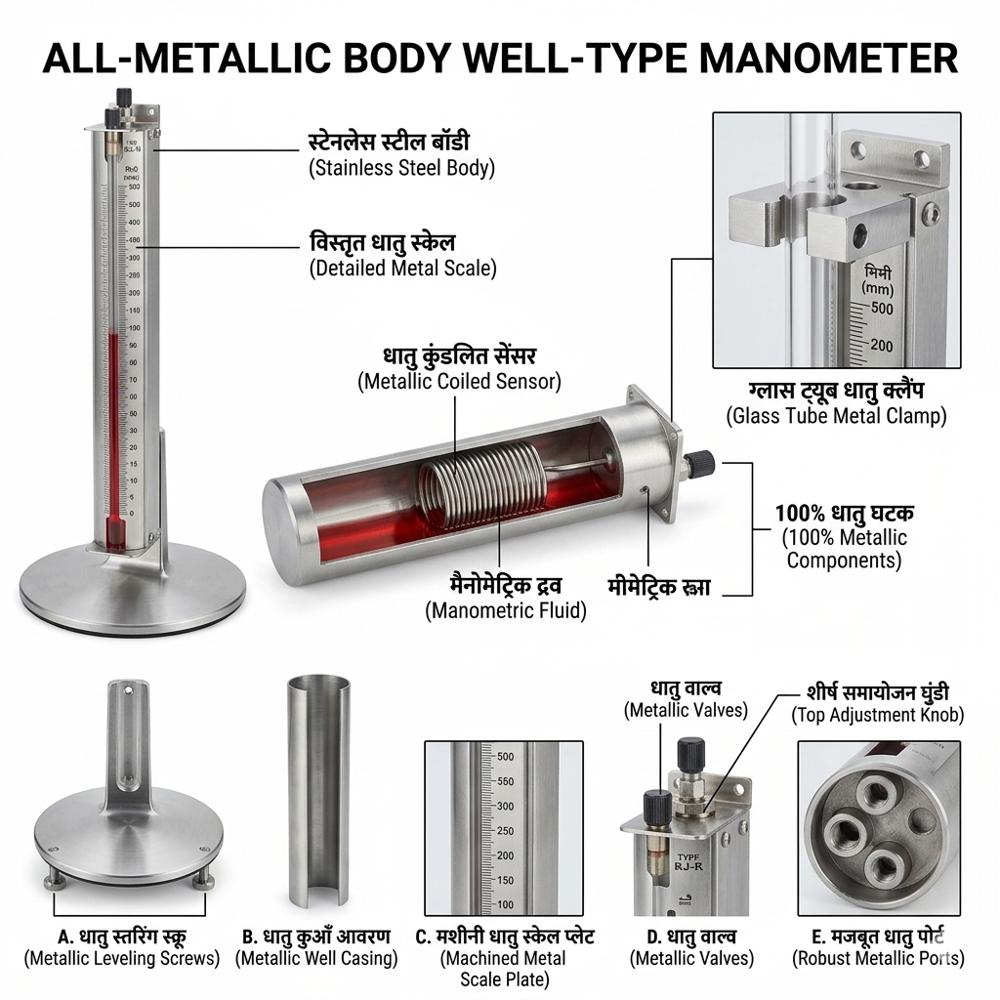

Metalic Body Manometer

Name: Metalic Body Manometer
Brand: Flow And Control System Pvt. Ltd.
Price: 1800.0 INR
Availability: InStock

Price 1800.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Metalic Body Manometer Specification

Temperature
0C to 60C

Max Height
Approx. 250-500 mm depending on model

Features
Corrosion-resistant body, high visibility scale, stable base

Port Size
Standard 1/4 BSP/NPT

Display Type
Glass tube with graduated scale

Automation Grade
Manual

Test Range
100-0-100 mm H2O

Humidity
0% - 95% RH (Non-Condensing)

Resolution
1 mm

Color
White And Grey

Response Time
Immediate/Instantaneous

Equipment Type
Metalic Body Manometer

Mounting Type
Freestanding / Table top

Material
Metal

Application
Precise measurement of gas or liquid pressure

Power Supply
Not Required (Mechanical)

Accuracy
1 mm

Interface Type
Tube connection

Gas Pressure
Atmospheric

Number of Specimens
Single Specimen at a time

Measuring Range
0 - 500 mm (other ranges available upon request)

Product Type
Metalic Body Manometer

Usage
Industrial, laboratory, and educational pressure measurement

Capacity
Depends on manometer tube range

Machine Weight
Approx. 1-1.5 kg

Control Mode
Manual

Service Life
Long operational life with minimal maintenance

Filling Fluid
Mercury or colored water/glycerin (based on model requirements)

Protection
Transparent shield for tube safety

Overall Dimensions
Approx. 150 mm base diameter x 250-500 mm height

Corrosion Resistance
Yes

Body Material
Metallic (e.g., stainless steel, aluminum coated)

Tube Material
Borosilicate glass

Colour
White/Metallic finish

Scale Graduation
Marked in mm / cm

Base Material
Powder-coated metal

Compliance
Meets standard laboratory and industrial pressure measuring norms

Metalic Body Manometer Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1-2 Week

Main Domestic Market
All India

About Metalic Body Manometer

U TUBE MANOMETER

Ranges (MM W.C./H.G.)

100 - 0 - 100, 250 - 0 - 250, 300 - 0 - 300,380 - 0 - 380, 500 - 0 - 500,750 - 0 - 750,1000 - 0 -1000

Least Count (MM) 1

SINGLE LIMB MANOMETER

Ranges (MM W.C./H.G.)

0-200,0-500,0-600,0-760,0- 1000, 0 - 1500, 0 - 2000

Least Count (MM) 1

Robust Metallic Construction

Crafted from high-quality stainless steel or aluminum-coated metal, the manometer is built for robustness and reliability. The powder-coated base and corrosion-resistant body ensure excellent durability, making it suitable for demanding industrial and laboratory environments. The transparent shield further safeguards the borosilicate glass tube from accidental impact.

Accurate, Immediate Pressure Measurement

With scale graduations marked clearly in millimeters or centimeters and a resolution and accuracy of up to 1 mm, the manometer enables precise monitoring of pressure changes. The glass tube and high-visibility scale facilitate easy readings, while the instantaneous response time ensures quick and reliable results for gas or liquid pressure evaluations.

Versatile and Maintenance-Free Operation

Operating manually and requiring no electricity, this manometer is suitable for freestanding or tabletop usage. It functions seamlessly across a wide range of environmental conditions, accommodating atmospheric pressure, 0%-95% humidity, and temperatures from 0C to 60C, offering users a maintenance-free experience and an extended lifetime.

FAQ's of Metalic Body Manometer:

Q: How do I install and use the Metalic Body Manometer for pressure measurements?

A: This manometer is designed for easy setup. Simply place it on a level surface, connect the inlet using the standard 1/4 BSP or NPT port to your pressure source, and ensure the tube is filled with the specified fluid (mercury or colored water/glycerin, depending on the model). As pressure is applied, the fluid column rises or falls, providing immediate readings on the graduated scale.

Q: What types of pressure can the manometer measure, and what is its measuring range?

A: The Metalic Body Manometer is suitable for measuring both gas and liquid pressures within a range of 0 to 500 mm H2O (other ranges available upon request). It is ideal for laboratory experiments, industrial monitoring, and educational demonstrations where accurate pressure assessment is required.

Q: When should I choose mercury, colored water, or glycerin as the filling fluid?

A: The choice of filling fluid depends on your specific application and the pressure range required. Mercury provides greater density and is used for higher pressure ranges, while colored water or glycerin is suitable for lower pressure ranges or when a non-toxic option is necessary. Refer to your usage needs or consult the manufacturer for recommendations.

Q: Where can the Metalic Body Manometer be effectively used?

A: This manometer is designed for versatile application in laboratory, industrial, and educational settings. Its robust, corrosion-resistant build and freestanding design allow it to be used on benchtops or workstations wherever precise and reliable pressure measurement is essential.

Q: What maintenance is required to maintain the longevity and accuracy of the manometer?

A: Routine maintenance is minimal, generally involving periodic cleaning of the tube and scale to keep readings visible, and ensuring the sealing connections and filling fluid are intact and uncontaminated. Its corrosion-resistant materials contribute to a long service life with minimal upkeep.

Q: How does the transparent shield enhance the safety and usability of this manometer?

A: The transparent shield provides a safety barrier that protects the borosilicate glass tube from accidental impacts or spills, preserving the accuracy and integrity of the readings while safeguarding users in busy environments.
