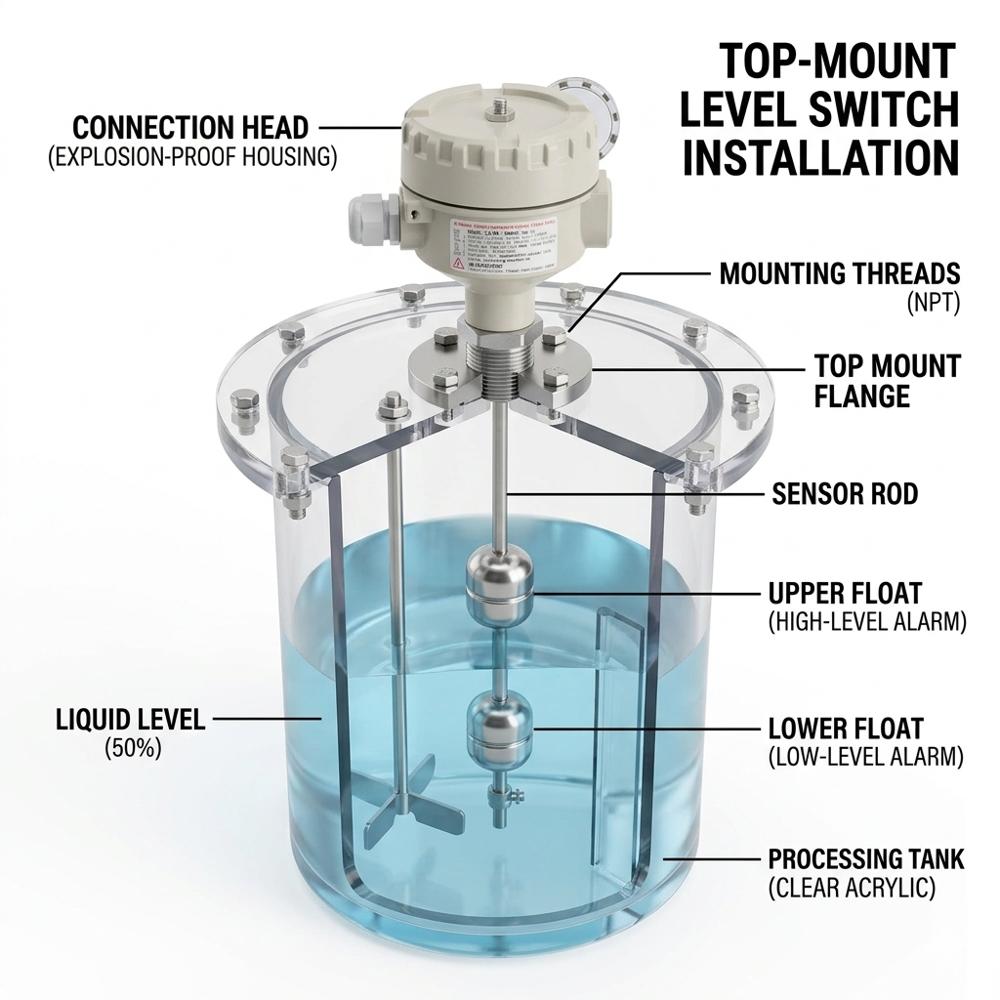

Top Mount Magnetic Level Switch

Name: Top Mount Magnetic Level Switch
Brand: Flow And Control System Pvt. Ltd.
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Top Mount Magnetic Level Switch Specification

Measuring Range
200 mm to 3000 mm (customizable as per tank height)

Temperature
-10C to +100C standard (higher temperature options available)

Gas Pressure
Suitable up to 10 kg/cm2 (higher on request)

Interface Type
SPST/DPDT (relay or reed switch output)

Humidity
Up to 95% RH

Display Type
No local display; remote indication possible

Features
Rugged construction, corrosion-resistant, easy installation, maintenance free

Equipment Type
Top Mount Magnetic Level Switch

Power Supply
Not required for mechanical switch; 24V/230V AC/DC for electrical output versions

Port Size
1 NPT/ 1 BSP standard (customizable)

Response Time
Instantaneous (mechanical float action)

Accuracy
5 mm or better

Max Height
Up to 3 meters stem length (custom on demand)

Mounting Type
Top Mount, flange or threaded

Automation Grade
Automatic

Application
Liquid level detection, tank level monitoring, pump control, process automation

Resolution
Depends on float and stem configuration

Operating Voltage
Up to 230V AC / 24V DC (for electrical output)

Usage
Liquid level sensing in water, oil, chemicals storage tanks

Capacity
Varies with float size and switch configuration

Machine Weight
Approx. 300-600 g (varies with stem length)

Control Mode
Float actuated magnetic switch

Process Connection
Threaded/flanged (available in various sizes)

Explosion Proof Option
Available as per ATEX/CMRI standards

Enclosure Protection
IP65 / IP67

Float Material
SS316/PTFE/PP (application dependent)

Cable Entry
PG9/PG13.5/1/2" NPT (as per client requirement)

Material of Construction
SS304/SS316 for wetted parts, aluminum/polycarbonate enclosure

Switch Rating
1A @ 230V AC / 0.5A @ 110V DC (reed relay)

Contact Type
NO/NC selectable

Minimum Specific Gravity
0.6 (with different float options)

Top Mount Magnetic Level Switch Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1-2 Week

About Top Mount Magnetic Level Switch

The provided Top Mounted Magnetic Level Switch is featured with a magnetized float to track the liquid level and to activate reed relays inside the tube. This switch continuously monitors liquid level in tanks and then sends a trip signal for protecting purpose and cooling circuit. We provide this switch with adjustable differential type feature and up to 40 Kg/cm2 working pressure. Each switch is designed with an intermediate chamber to make it fit for higher temperature and lower temperature applications. Working on buoyancy principle, the glandless design of this switch prevents the chances of fluid leakage. This Top Mounted Magnetic Level Switch is made up of quality checked spring, non-magnetic barrier tube, actuating magnet, magnetic sleeve and other components.

Reliable Liquid Level Monitoring

Top Mount Magnetic Level Switches provide accurate detection of liquid levels in tanks and process vessels. Their float-actuated mechanism responds instantly to changes in liquid height, triggering reed or relay switches for automated process control and remote signaling. With customization for stem length and float material, they are adaptable to applications from 200 mm up to 3 meters in measuring range, serving a wide selection of industrial settings.

Rugged and Versatile Construction

Built with SS304/SS316 wetted parts and a choice of aluminum or polycarbonate enclosure, the level switch stands up to corrosive environments, high humidity, and fluctuating temperatures. The IP65/IP67 protection ensures safe and maintenance-free operation. Customizable mounting options, switch ratings, and port sizes allow for seamless integration into new or existing tank systems.

Simple Installation and Low Maintenance

Designed for top mounting with threaded or flanged process connections, this magnetic level switch is easy to install and requires minimal maintenance. Its float-actuated design functions mechanically, requiring no power supply for basic operation, while electrical versions are available for automated outputs. With selectable NO/NC contacts and explosion-proof options, it is ideal for demanding industrial automation tasks.

FAQ's of Top Mount Magnetic Level Switch:

Q: How does the top mount magnetic level switch function in liquid level sensing?

A: This switch operates via a float-actuated mechanism; as liquid rises or falls in the tank, the float moves accordingly, activating a magnetic reed or relay switch for immediate and accurate level detection.

Q: What materials are used in construction, and how are they beneficial for chemical or corrosive environments?

A: Wetted parts are crafted from SS304 or SS316 stainless steel, with optional PTFE or PP floats for strong chemical resistance, ensuring longevity and reliability even in aggressive industrial environments.

Q: Where can this magnetic level switch be installed and what are its application areas?

A: It is designed for top mounting on tanks with threaded or flanged connections, suitable for water, oil, or chemical storage, as well as process automation and pump control in industrial facilities.

Q: When should I consider the explosion-proof option, and what certifications does it meet?

A: Choose the explosion-proof variant when installing in hazardous or explosive environments; these models comply with ATEX and CMRI standards for safety and regulatory requirements.

Q: What process connections and cable entries are available for integration into existing systems?

A: Process connections include threaded and flanged in multiple sizes, while cable entries are available in PG9, PG13.5, and 1/2" NPT, all tailored to client requirements for flexible integration.

Q: How is the level switch powered and what are the control modes?

A: For purely mechanical switching, no external power supply is needed. Electrical output versions require 24V or 230V AC/DC for signaling to remote monitoring or automation systems.

Q: What are the key benefits of using a top mount magnetic level switch in industrial applications?

A: Key advantages include rugged corrosion-resistant construction, instant response, high reliability, easy installation, customizable design, maintenance-free operation, and the option for explosion-proof use.
