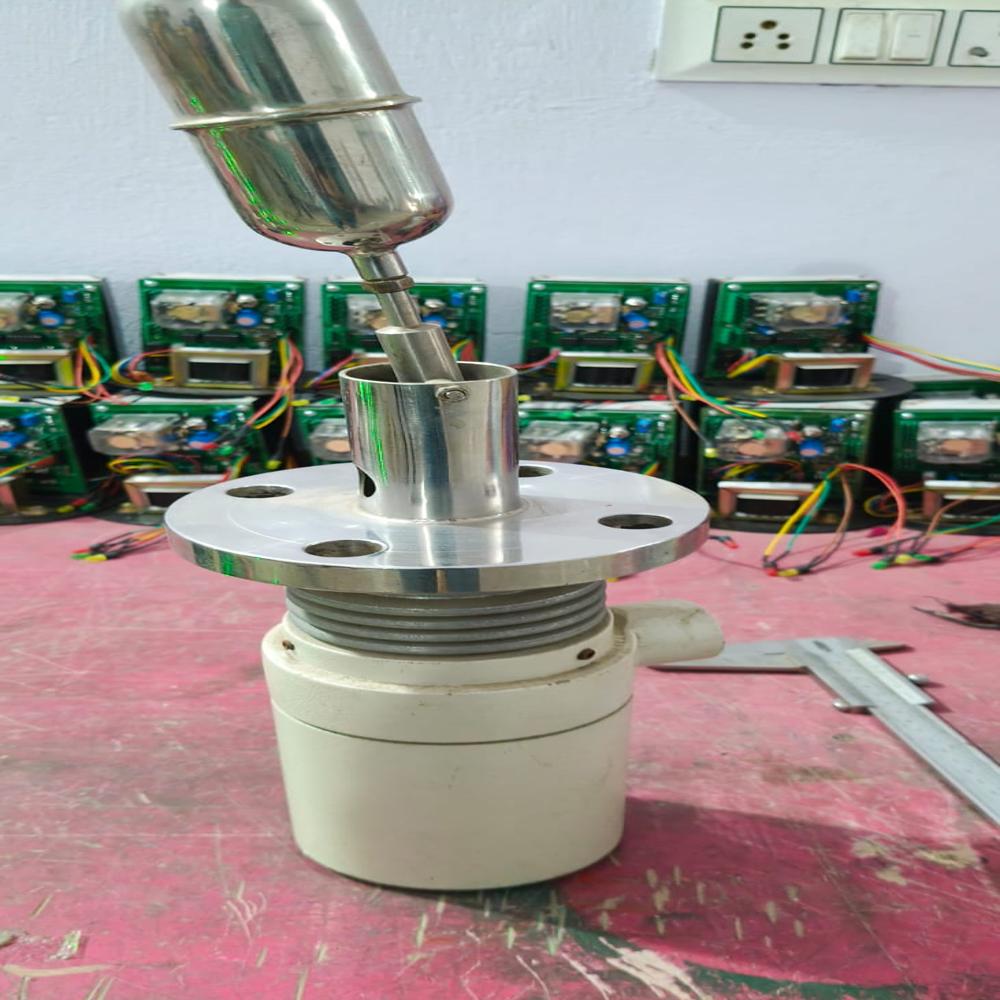

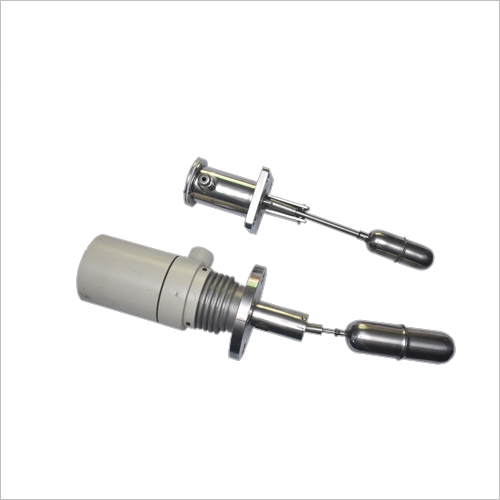

Side Mount Level Switch

Name: Side Mount Level Switch
Brand: Flow And Control System Pvt. Ltd.
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Side Mount Level Switch Specification

Measuring Range
Customizable as per tank

Response Time
< 1 second

Frequency
50/60 Hz

Equipment Type
Side Mount Level Switch

Automation Grade
Manual/Semi-automatic

Interface Type
SPST/SPDT contact

Accuracy
2 mm

Port Size
1/2 BSP or NPT Thread

Mounting Type
Side mounting

Display Type
No display

Max Height
Depends on tank design

Application
Liquid level detection in tanks or vessels

Temperature
-10C to 80C

Humidity
Up to 95% RH

Power Supply
230V AC / 24V DC

Operating Voltage
230V AC / 24V DC

Features
Corrosion resistant, Reliable operation, Easy installation

Usage
Industrial/Commercial fluid tanks

Capacity
Max. 1A, 250V AC

Machine Weight
Approx. 100-150 g

Control Mode
On/Off

Material of Construction
Stainless Steel/Polypropylene

Ingress Protection
IP65

Process Connection
Threaded/Flanged

Contact Rating
1A @ 230V AC

Switch Type
Magnetic Reed Switch

Cable Entry
PG9/PG11

Working Pressure
Up to 6 bar

Float Material
SS 304 / SS 316 / Polypropylene

Side Mount Level Switch Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1-2 Week

About Side Mount Level Switch

Perfect for high-temperature applications, this Side Mounted Magnetic Level Switch is used to control liquid level at variable temperatures in tanks. This switch initiates low or high audio-visual signals in pressurized or open tanks and sterilizing equipment. Works on magnetic repulsion principle, this switch features a float assembly which carries a permanent magnet. Simple and rugged design of this switch ensures ease of installation in outdoor and indoor premises. Power and maintenance free functionality of this switch makes it suitable for low, high and intermediate point level switching. You can get this Side Mounted Magnetic Level Switch from us in standard sizes and specifications according to the application requirements.

Reliable Liquid Level Detection for Industrial Applications

Engineered with robust materials and a magnetic reed switch, this side mount level switch delivers dependable performance for both industrial and commercial liquid tanks. It provides accurate level monitoring, essential for maintaining efficient fluid management in demanding environments. The switch is corrosion-resistant, ensuring long operational life, and is suitable for a wide variety of process fluids.

Flexible Installation and High Compatibility

The level switch is available with threaded or flanged connections, making it easy to install on various tank designs. With a wide operating voltage (230V AC / 24V DC) and multiple cable entry options (PG9/PG11), it meets diverse application needs. The measuring range is customizable, ensuring compatibility with different tank sizes and fluid types, and mounting is conveniently accomplished on the tank sidewall.

FAQ's of Side Mount Level Switch:

Q: How does the Side Mount Level Switch operate in liquid level detection?

A: The Side Mount Level Switch utilizes a float that moves with the liquid level. As the float rises or falls, it actuates a magnetic reed switch inside the device, triggering the electrical contact. This mechanism provides On/Off control for liquid level management in tanks or vessels.

Q: What materials are used in the construction of this level switch?

A: This switch is constructed using corrosion-resistant stainless steel (SS 304, SS 316) or polypropylene, both offering durability in a range of process environments, including water, chemicals, and oils.

Q: Where can the Side Mount Level Switch be installed?

A: It is designed for side mounting on the walls of industrial or commercial tanks and vessels. Its process connection options, such as 1/2 BSP or NPT threads, flanged mounts, and adjustable float materials, ensure ease of installation on various tank designs.

Q: What applications benefit from using this level switch?

A: This device is suitable for liquid level detection in a wide array of industrial and commercial applications, including fluid storage tanks, process vessels, and machinery that require precise level monitoring to ensure safe and efficient operation.

Q: What are the main benefits of the magnetic reed switch design?

A: The magnetic reed switch design offers fast response (less than 1 second), high accuracy (2 mm), and reliable performance with minimal maintenance. Its sealed construction makes it resistant to dust and moisture, compliant with IP65 standards.

Q: How is the measuring range of the switch customized?

A: The measuring range can be tailored during the manufacturing process to meet the specific level detection requirements of a customer's tank or vessel, ensuring optimal fit and performance for different installation scenarios.
