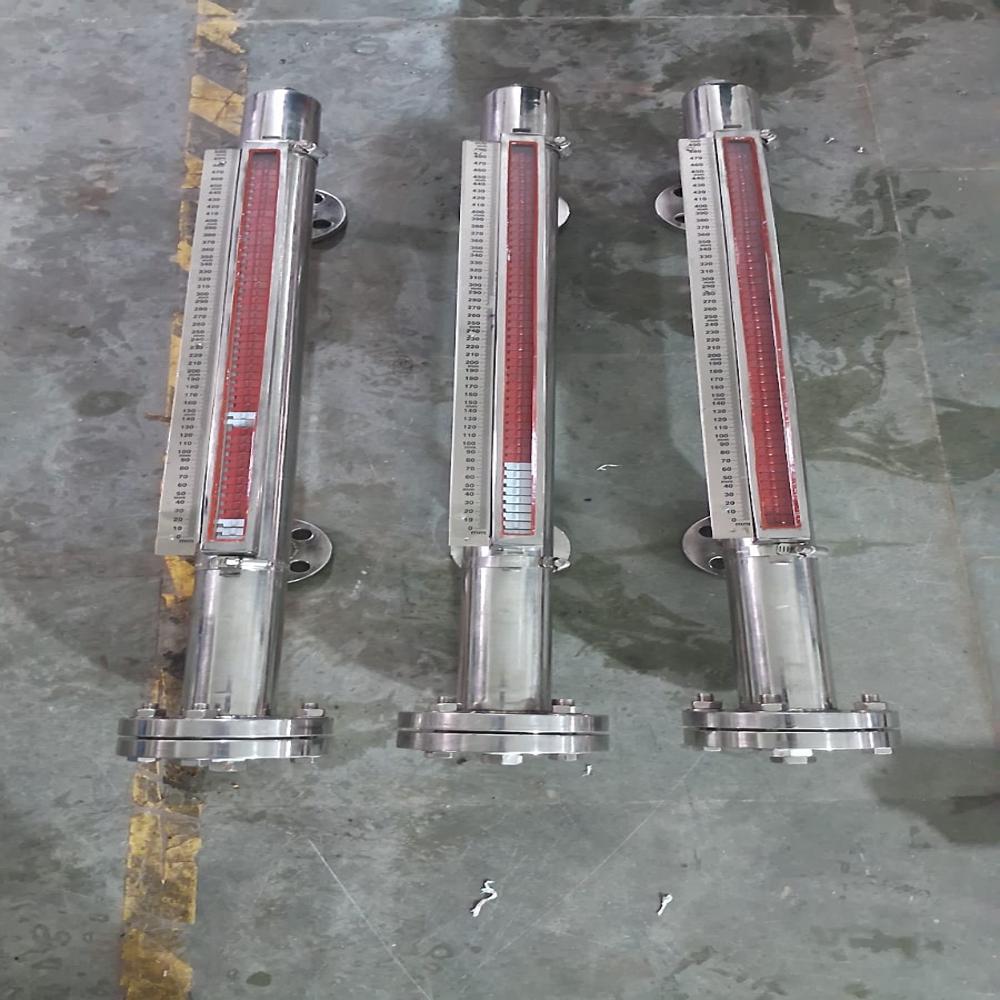

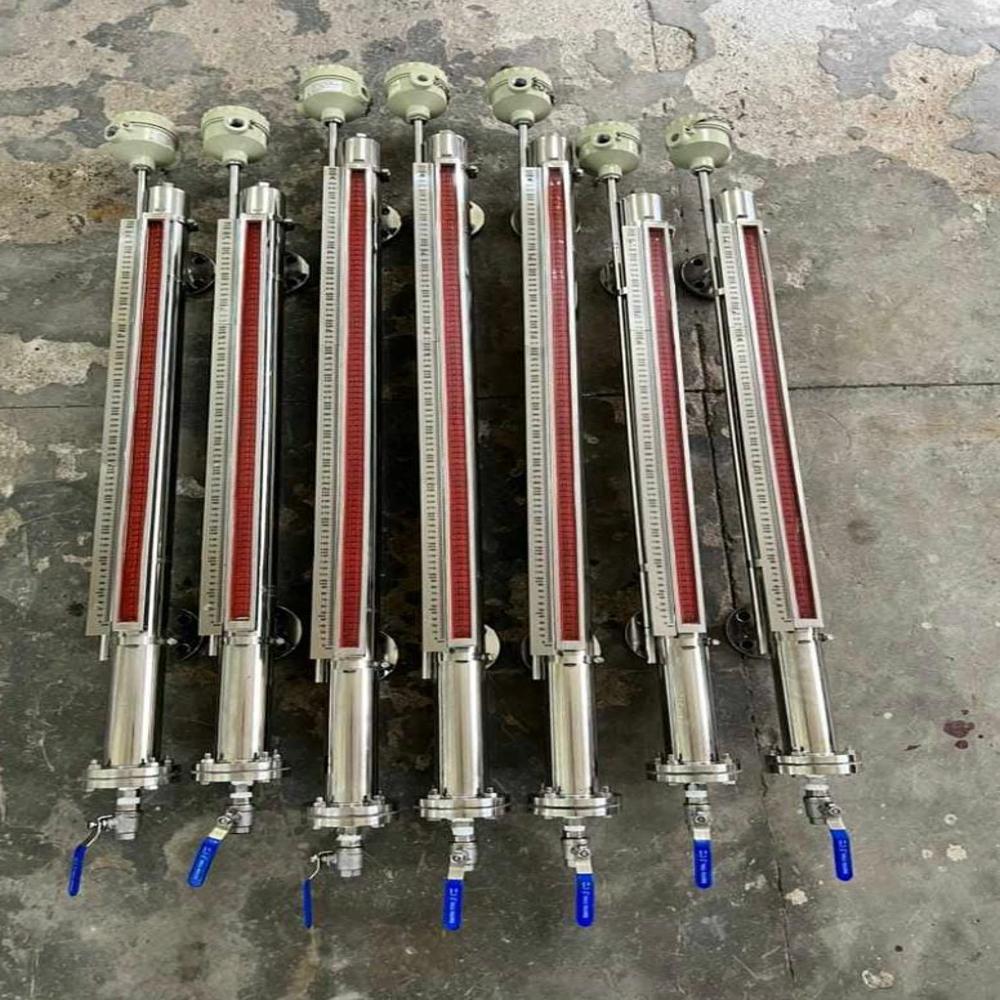

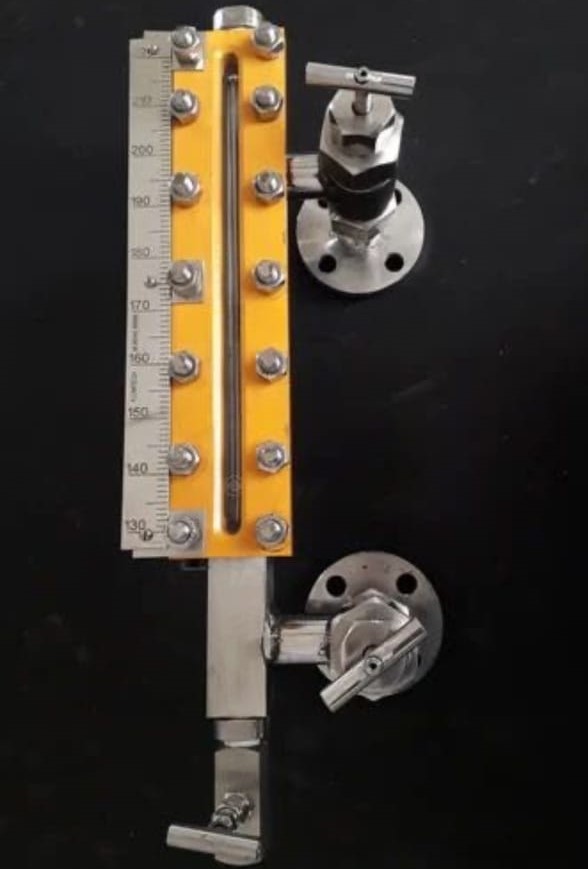

Magnetic level Indicator

Name: Magnetic level Indicator
Brand: Flow And Control System Pvt. Ltd.
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

Magnetic level Indicator Specification

Temperature
-40C to +300C (depends on construction)

Resolution
10 mm

Power Supply
Not Required (for basic version); Optional transmitter: 24V DC

Humidity
5% - 95% RH (non-condensing)

Accuracy
10 mm or better

Max Height
6 meters (customization available)

Measuring Range
150 mm to 6000 mm (custom on request)

Features
Non-contact external readout, safe for hazardous areas, corrosion resistant

Application
Continuous level measurement for liquids in tanks and vessels

Gas Pressure
Up to 35 bar (customized as per application)

Interface Type
Optional: 4-20mA output, relay contacts

Port Size
1/2 to 4 Flanged or threaded connection

Display Type
Magnetic Flap / Magnetic Roller visual indication

Automation Grade
Manual/Optional automatic with transmitter

Response Time
<1 second

Operating Voltage
Not required for mechanical indication; 24V DC for transmitter output

Equipment Type
Magnetic Level Indicator

Mounting Type
Side mounted, top mounted

Usage
Industrial liquid level monitoring

Capacity
Tank-dependent, up to several meters indication height

Machine Weight
Approx. 3-8 kg (depending on model and mounting type)

Control Mode
Manual/Float actuated

Float Material
SS316, Titanium or Polypropylene

Process Connection
Flanged/Threaded as per ANSI/DIN/BS standards

Enclosure Rating
IP65, IP67 for transmitter housing

Scale Marking
Clear marking with UV resistant printing

Chamber Material
SS304, SS316, PP, PVC, as per requirement

Switch Contacts
SPDT/DPDT magnetic reed switch optional

Explosion Proof
Available as per ATEX/IECEx

Color Indication
Red for liquid, white for air/gas

Certificates
ISO 9001, CE marking, on request

Medium Density
0.6 g/cm3

Magnetic level Indicator Trade Information

Minimum Order Quantity
1 Set

Delivery Time
1-2 Week

About Magnetic level Indicator

Discover the rare Magnetic Level Indicator, now at a reduced price-jump on this praiseworthy solution for liquid level control! With a towering measuring range from 150 mm up to 6000 mm, this matchless instrument features chamber options in SS304, SS316, PP, or PVC, and float materials in SS316, Titanium, or Polypropylene. Its clear, UV-resistant scale markings and non-contact external readout ensure enduring clarity. Fit for laboratories and industrial use, it offers corrosion resistance, explosion-proof construction, and precise manual or automated operation. Perfect for demanding applications in India, available with ISO and CE certification.

Versatile Applications and Outstanding Features

Magnetic Level Indicators are not limited to laboratories and industrial liquid monitoring-they also perform flawlessly in water treatment plants, chemical processing, petrochemical sites, and hazardous areas. Their robust construction and corrosion resistance make them suitable for diverse environments. Additional features include explosion-proof housing, enclosure ratings up to IP67, and optional remote transmitter outputs. With vibrant, UV-resistant color indication, they provide instant level identification from a distance, enhancing safety and efficiency across multiple application sites.

Supply Ability, Sample Policy & Packaging Details

Our outlay is tailored for rapid deployment-magnetic level indicators are stock ready for immediate dispatch. Samples can be provided upon request to facilitate testing or evaluation. Packaging is meticulously handled, ensuring secure goods transport and minimal risk of damage. Bubble-wrapped and crated in sturdy boxes, each unit is labeled for traceability and accompanied by essential documentation. We guarantee seamless order processing, whether for single units or bulk quantities, to meet your operational timelines and project requirements.

FAQ's of Magnetic level Indicator:

Q: How does the magnetic level indicator ensure safety in hazardous areas?

A: The indicator is constructed with explosion-proof enclosures (ATEX/IECEx certified) and non-contact readout, making it safe for use in hazardous or potentially explosive environments.

Q: What are the main applications of this magnetic level indicator?

A: It is ideal for continuous liquid level measurement in tanks and vessels across laboratories, industrial setups, chemical plants, petrochemicals, and water treatment facilities.

Q: Where can the magnetic level indicator be installed?

A: It supports side or top mounting on tanks and vessels and is compatible with both flanged and threaded process connections, adhering to ANSI, DIN, and BS standards.
